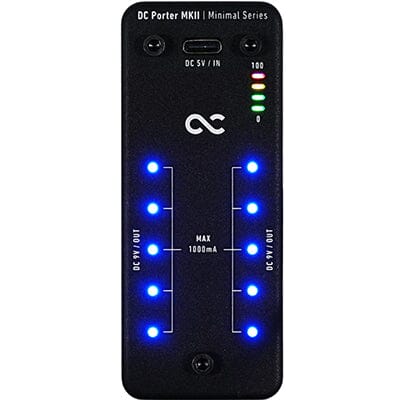

One Control Minimal Series DC Porter MKII
One Control Minimal Series DC Porter MKII
DC Porter MKII connects power from a power bank to the USB-C port. All DC outputs are center minus DC9V, and there are 10 ports. It can accommodate large pedal boards with ease.
The current capacity that can be output varies depending on the connected mobile battery, but the maximum total current capacity is 1000mA. There is no current limit for each DC9V out.
It also has an indicator that shows the current usage status. The 300mA, 600mA, 900mA, and 1000mA (overload) indicators will light up. Below 300mA, only the blue LED of each DC9V output lights up; above 300mA, one indicator lights up; above 600mA, two indicators light up; and above 900mA, three indicators light up.
Normally, if the indicator above 900mA lights up, refrain from supplying more power.
If the red LED overload indicator lights up, please disconnect all connections, including the mobile battery.
âSpecifications
ă»DC Porter MKII main unit
ăterminals: DC9V out x 10, USB-C x 1
ăCurrent capacity: Max 1000mA
ăSize: 92.5mm x 38mm x 33.5mm
ăWeight: 215g
*DC Porter MKII main unit only.
*The actual current capacity that can be supplied varies depending on the connected adapter and the remaining battery level of the battery. There is no limit to the maximum current capacity for each output terminal.
Original: $76.41
-70%$76.41
$22.92Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
One Control Minimal Series DC Porter MKII
DC Porter MKII connects power from a power bank to the USB-C port. All DC outputs are center minus DC9V, and there are 10 ports. It can accommodate large pedal boards with ease.
The current capacity that can be output varies depending on the connected mobile battery, but the maximum total current capacity is 1000mA. There is no current limit for each DC9V out.
It also has an indicator that shows the current usage status. The 300mA, 600mA, 900mA, and 1000mA (overload) indicators will light up. Below 300mA, only the blue LED of each DC9V output lights up; above 300mA, one indicator lights up; above 600mA, two indicators light up; and above 900mA, three indicators light up.
Normally, if the indicator above 900mA lights up, refrain from supplying more power.
If the red LED overload indicator lights up, please disconnect all connections, including the mobile battery.
âSpecifications
ă»DC Porter MKII main unit
ăterminals: DC9V out x 10, USB-C x 1
ăCurrent capacity: Max 1000mA
ăSize: 92.5mm x 38mm x 33.5mm
ăWeight: 215g
*DC Porter MKII main unit only.
*The actual current capacity that can be supplied varies depending on the connected adapter and the remaining battery level of the battery. There is no limit to the maximum current capacity for each output terminal.
