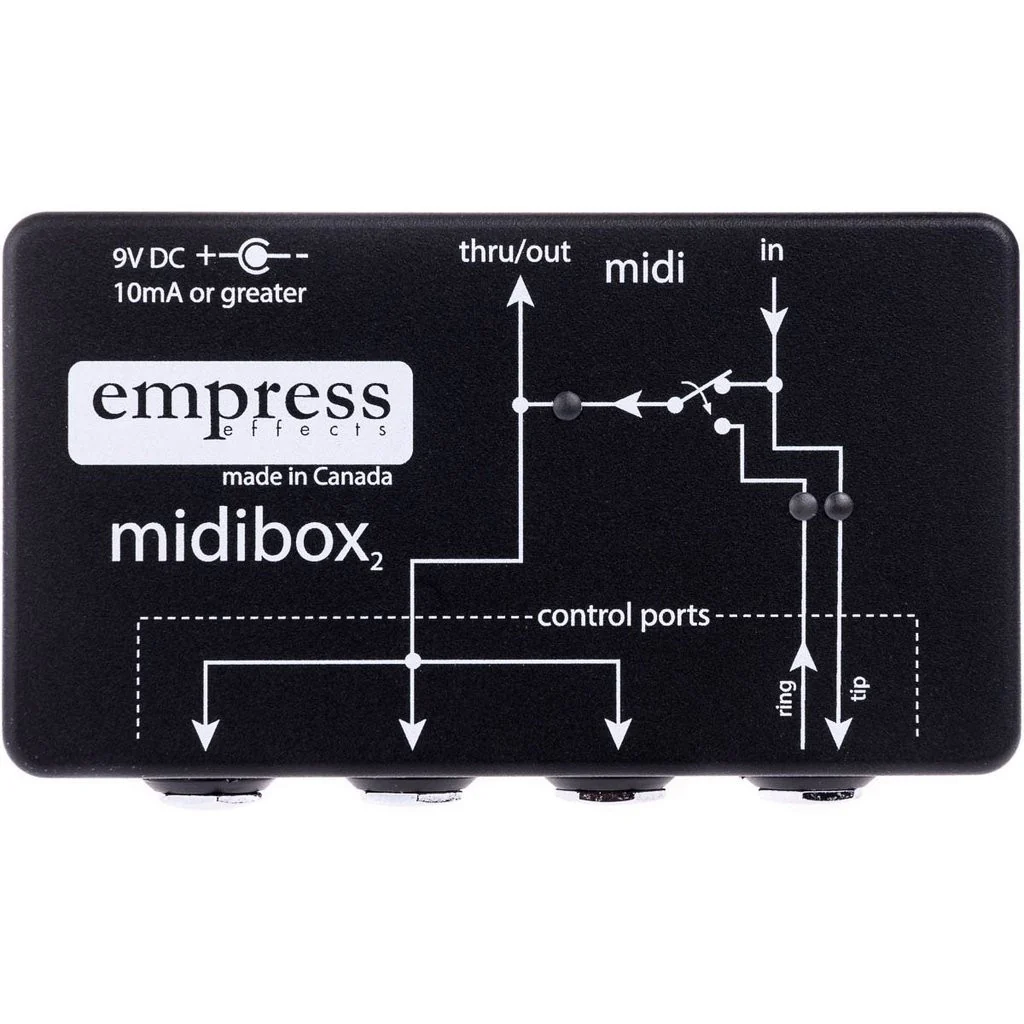

Empress Midibox2

The Midibox allows you to connect Empress Pedals equipped with a control port to MIDI. It converts the standard 5 pin MIDI cable to a simple guitar patch cable.



• Control Empress Pedals with MIDI - Use MIDI to control any Empress pedal equipped with a control port.
• Control up to 4 pedals at once - The midibox has 4 control port outputs that let you control up to 4 Empress pedals simultaneously.
• MIDI out - set the internal dip switch to accept midi out messages from the control port and relay them to the other control ports and the midi thru/out connector.
• LED feedback - LEDs light up, letting you know when and where MIDI messagess are being sent.



Specifications

Power Input Voltage	9V DC
Power Input Connector	2.1mm barrel connector (Negative tip)
Power Consumption	~ 30mA
Enclosure Material	Die Cast Aluminum
Input connector	Standard 5 pin MIDI connector
Output connector	1/4" Jack
Height	1.25"
Length	4.5"
Width	2.5"
weight	0.5 lb
